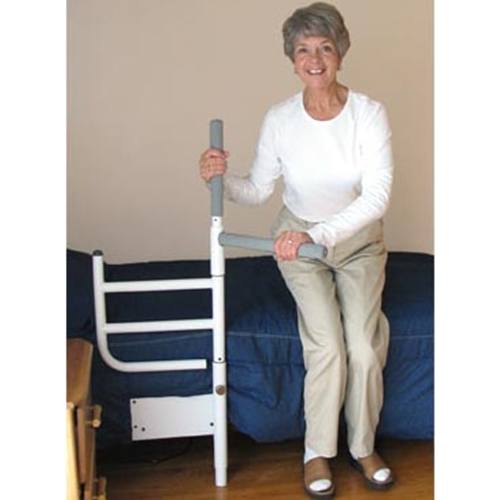

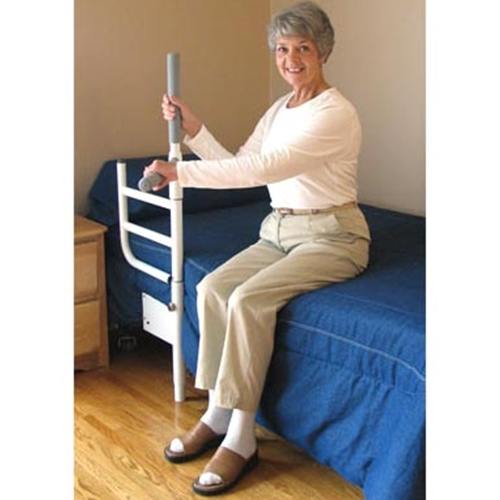

HealthCraft ModRail from HealthyKin.com includes a fixed dual rail and a horizontal bar (ModBar™) that can be repositioned to an optimal support location. Lift to unlock, hold up to rotate freely, lower any time to lock.
HealthCraft ModRail Features:
Patient Sleep Safely - Fixed dual rail helps reduce patient falls while sleeping, yet it won't hinder patient when exiting the bed. Removable in seconds in case of emergency.
Patient Transfers Safely - Highly effective Mod-Bar™, uses patented SuperBar™ technology to help patient transfer safely in and out of bed. It pivots and locks every 45° and moves in step with the patient.
Reduces Caregiver Strain - The ModBar™ lets patient make use of their available strength while a caregiver carefully supervises and aids the client in transfer.
Easy Installation - ModRail™ assembly secures to ModRail™ Bracket via securing knurled knob. ModRail™ is removable in seconds in case of emergency.
Vertical Pole of ModRail™ - 24"/61cm length, 1.5"/3.81cm diameter.
Triple Rail Side Gate - 4"/10cm spacing between each rail, 14"/36cm length, 1.25"/3.175cm diameter.
Pivoting & Locking Bar - 14"/36cm length, 1.25"/3.175cm diameter.
Threaded Top Grip (Removable) - 12.5"/32cm length, 1.25"/3.175cm diameter.
Rail Assembly - Adjustable range 4"/10cm (overall height of rail assembly dependant on bed height).
For box spring & mattress beds (includes bracket)
Note: Prior to installing the ModRail™ System, we strongly recommend that you first read through the instructions. It is your responsibility to see that your ModRail™ System is properly assembled, installed, operated, and cared for. Failure to follow these instructions could result in injury or death. Modular rail assembly options (ModRailTM System, ModBar™, ModPole™, & ModRail™ Add-On-Kits & Accessories) are designed to fit ONLY on HealthCraft's ModRail™ System. NOTE: The support bracket is bolted securely to the stationary section on the metal frame of the bed. The modular options are secured into the bed receptacle system with a threaded knob. Inspect the ModRail™ System regularly, including bolts, set screws, knurled knobs, and add-ons. Maximum suggested user weight is 325lbs/147kg. Lock / remove casters on mobile beds prior to using rail.
