VitalWrap System

Select Options

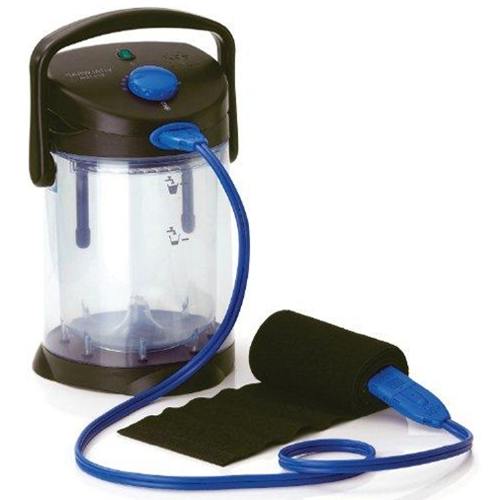

VitalWrap System from HealthyKin.com consists of three components: a control unit, a tubing set, and a thermal fabric wrap. The control unit, which includes a fluid reservoir, manages the temperature of water used by the system to supply heat or cold to the fabric wrap attached to the body. By pumping the water through a heat-exchanging bladder inside the wrap, the control unit warms or cools the water to match the proper temperature setting, delivering precise and safe thermal therapy.

Set-up is a simple, three-step process:

Fill the portable, leak-proof reservoir with ice and water.

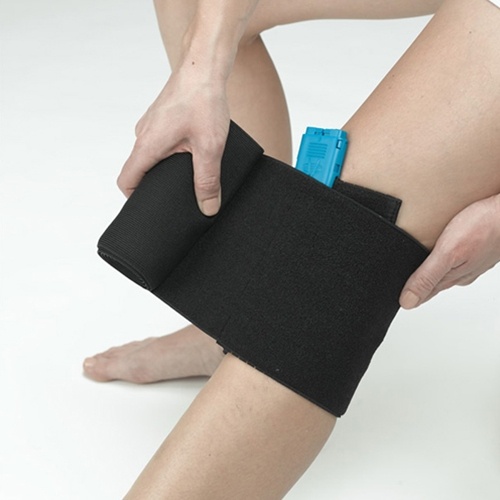

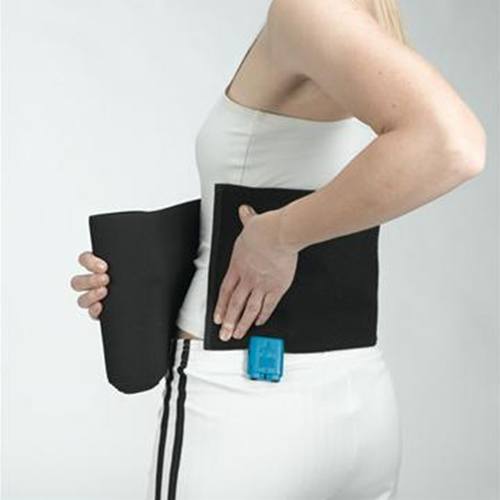

Place the bladder portion of the wrap around the treatment area and secure it with the Velcro™ closure.
Attach the wrap to the control unit using the tubing set.

Once the control unit is turned on, the cooled or warmed fluid is passed through the tubing set to the wrap. As it circulates into the wrap from the control unit, the fluid either applies heat to warm the treatment area or draws it away for deep cooling. The fluid then flows back into the control unit, where it is re-cooled or re-warmed before cycling back into the wrap.

The VitalWrap System is designed so that the user can apply thermal therapy for extended periods. The typical transition time between the warm and cold settings in the temperature range is about one minute.

WARNING: Use carefully. Any hot/cold therapy may cause serious burns. Do not use over sensitive skin areas or in the presence of poor circulation. The unattended use of the VitalWrap System by children or incapacitated persons may be dangerous.

VitalWrap System Specifications:

Size (approximately): 8" diameter x 13.5"H (20.3cm x 34.3cm)
Weight (dry): 5 lbs. (2.27 kg)
Fluid Tether: 8 ft. (2.4m)
Control System Type: Manual user control
Thermal System Range: 40°F to 105°F (4.4°C to 40.6°C)
Contrast therapy transition time: 1 minute typical from extremes in temperature range
Operating period: 2-6 hours typical continuous use
Thermal Cutout: 117°C
Circulating System Reservoir Capacity: 1.1 gallons (4.2 L)
Reservoir Fluid: Ice water
Flow Rate (through VitalWrap): 5.5 gph (21 lph)
Maximum Pressure: 18 psi
Electrical System Voltage: 100, 120Vac, 50/60Hz, or 220-240Vac, 50Hz
Power 300W
Internally fused: System and pump
Leakage Current: Under 300µA
Operating Environment Atmospheric Pressure: 525 to 795 mmHg
Humidity: 30% to 70% relative non-condensing
Temperature 50°F to 104°F
Transport & Storage Environment Atmospheric Pressure: 179 to 760 mmHg
Humidity 10% to 95% relative non-condensing
Temperature 32°F to +122°F
Regulatory Classification: Class I Equipment
Type of Equipment: Type BF
Regulatory Approvals Compliance: UL2601-1: Standard for Medical Equipment Part 1: General Requirements for Safety. CAN/CSA-C22.2 no. 601.1-M90: Medical Electrical Equipment Part 1: General Requirements for Medical Electrical Equipment. IEC 60601-1: Part 1: General Requirements for Safety.IEC 60601-2-35: Particular Requirements for the Safety of Blankets, Pads and Mattresses Intended for Heating in Medical Use.
HCPCS Code: E0217; Water Circulating Heat Pad with Pump
HCPCS Code: E0249; Pad for Water Circulating Heat Unit, for Replacement Only
