    HealthCraft Dependa-Bar from HealthyKin.com is a revolutionary combination of standard wall mounted grab bar, with the well proven benefits of the SuperBar for movable support. Designed for bathrooms and other environments where grab bars are found.


    Pivoting & Locking Technology
    Dependa-Bar locks every 45° (5 positions), providing a support rail that moves with user.

    Ease of Installation
    Mounts securely to structural studs behind bathtub wall of any construction (fiberglass, plastic, tile wall, etc.). Bolt pattern compatible with WingIts Fastening System (sold separately) if wall stud spacing does not allow for direct mounting.

    Reversible
    Bottom grab bar can be mounted for either left or right side applications.

    Versatile

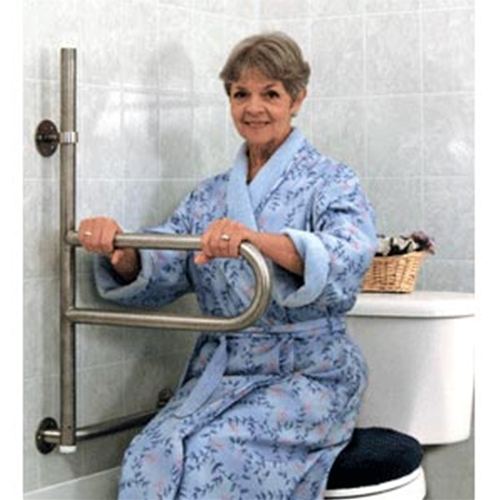

    Can be installed in the bathtub or beside the toilet.

    Water Resistant
    Stainless steel construction provides an easy to clean, durable grab rail that can be safely exposed to water.

    ADA Compliant
    Fixed horizontal grab bar (1¼" dia) has 1½" clearance from wall. When locked against the wall, the Dependa-Bar is aligned with the fixed horizontal grab bar.

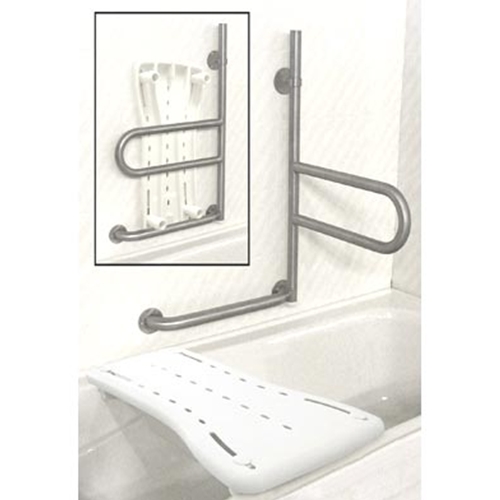

    Optional Bath Board
    Maximize bathing safety with a beautifully contoured plastic seating surface that includes a soap dish and handle. Fits most standard bathtub widths (15"-25"/40-60cm).

    Pivot Rail
    1¼"/3.175 cm grip diameter, Stainless steel construction.

    Pivot Rail Height
    33"/84cm vertical rail height.

    Pivot Rail Length
    "P" shaped dual rail extends 20"/51cm length from bathtub wall (5"/13cm spacing between horizontal rails). Locks every 45° (5 positions).

    Horizontal Grab Bar
    1¼"/3.175cm grip diameter. 1½"/3.81cm clearance from wall (ADA compliant). Height adjustable at time of installation, typically 4"/10cm from top of bathtub surface. Stainless steel construction.

    Horizontal Grab Bar Lengths
    18"/46cm (accomodates standard stud spacing of 16" from center to center)

    Rail Material
    Stainless steel construction. Available as knurled stainless steel and white powder coat finish.

    Weight Capacity
    325lbs/147kg.

    HealthCraft Dependa-Bar Features:
    • A breakthrough combination of a wall mounted grab bar, and the proven benefits of a pivoting and locking dual rail. Designed for bathing, toileting and other environments where grab bars are found.
    • 5 locking positions - lift to unlock dual rail, keep rail up to move freely, let rail down to securely lock in place. Stand to shower, lean over to adjust shower controls or use when lowering into the tub. Easy to use ladder-like support for getting on and off the toilet.

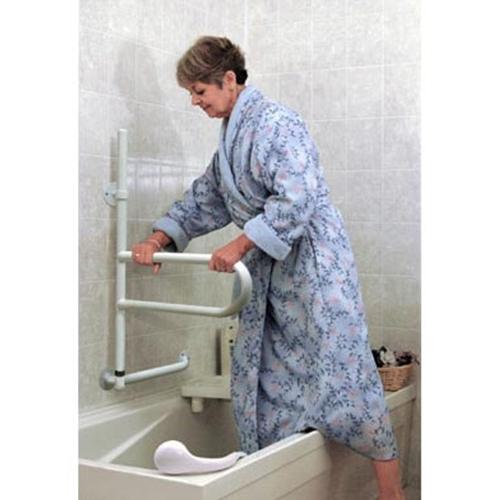

    • Safe bathtub entry - dual rail extends 20"/51cm from wall to provide a weight bearing surface for safe entry and exit from the bathtub.
    • Installs like a grab bar - mounts securely to structural studs with 3 contact points for added strength. Bottom grab bar is reversible for a left or right side installation.
    • Stainless steel construction. Unlike zinc or chrome plated grab bars that can chip and rust, the Dependa-Bar will never rust.
    Note: The Dependa-Bar should only be installed in areas where the mounting surface is structurally sound. If you are not equipped to undertake the outlined work we recommend that you have your Dependa-Bar installed by a qualified contractor. The Dependa-Bar must be secured to wall with fasteners appropriate to the structural material. Fasteners must be rated for certain retention force each for maximum weight capacity (see within for recommendations). Mounting fasteners should be inspected monthly and tightened if necessary. Rail is capable of supporting a maximum suggested user weight of 325lbs/147kg.

    Due to variances in needs, materials and local construction methods, the information contained within concerning mounting location, fasteners and wall fabrication is provided as suggestion only. Consult the appropriate local professionals for best advice.

    Part numbers: DB-18-PCW, DB-18-SK
